Notepad++ simple GP syntax highlighting

Post by Spiralo-Idioïde » Jul 3rd, '19, 13:41

Just few days ago i began to use the GP's textual libraries. And it's quite not user friendly with a basic textual editor. So I decided to use the user defined language feature of notepad ++.

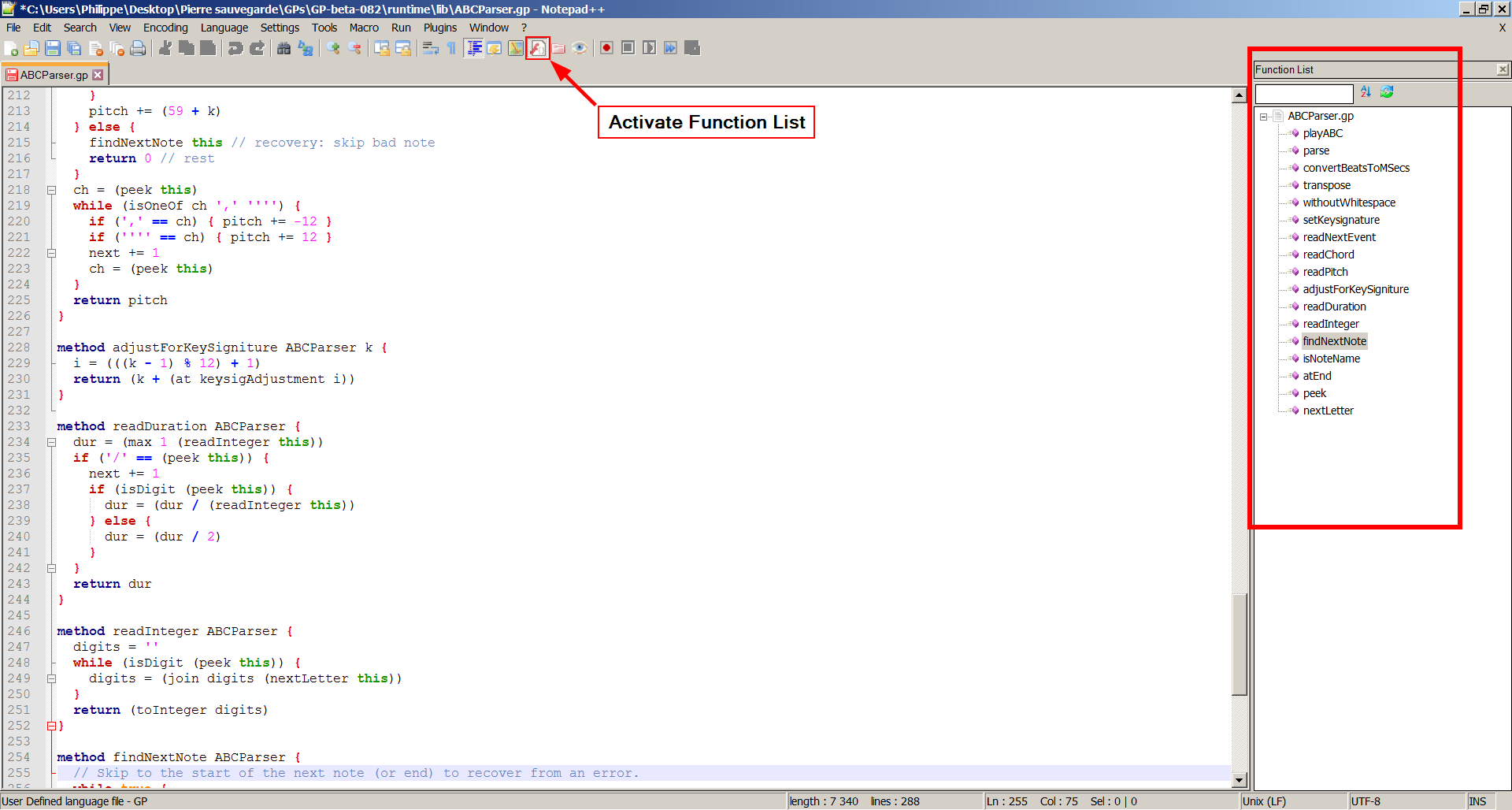

A screenshot :
GP syntax.PNG

And the code:

Code: Select all

    <UserLang name="GP" ext="" udlVersion="2.1">
            <Global caseIgnored="no" allowFoldOfComments="no" foldCompact="no" forcePureLC="0" decimalSeparator="0" />
            <Prefix Keywords1="no" Keywords2="no" Keywords3="no" Keywords4="no" Keywords5="no" Keywords6="no" Keywords7="no" Keywords8="no" />
            <Keywords name="Comments">00// 01 02 03 04</Keywords>
            <Keywords name="Numbers, prefix1"></Keywords>
            <Keywords name="Numbers, prefix2"></Keywords>
            <Keywords name="Numbers, extras1"></Keywords>
            <Keywords name="Numbers, extras2"></Keywords>
            <Keywords name="Numbers, suffix1"></Keywords>
            <Keywords name="Numbers, suffix2"></Keywords>
            <Keywords name="Numbers, range"></Keywords>
            <Keywords name="Operators1"></Keywords>
            <Keywords name="Operators2">== === + - / * &lt; &gt; &lt;= &gt;= != % isNil notNil compareFloats</Keywords>
            <Keywords name="Folders in code1, open">{</Keywords>
            <Keywords name="Folders in code1, middle"></Keywords>
            <Keywords name="Folders in code1, close">}</Keywords>
            <Keywords name="Folders in code2, open"></Keywords>
            <Keywords name="Folders in code2, middle"></Keywords>
            <Keywords name="Folders in code2, close"></Keywords>
            <Keywords name="Folders in comment, open"></Keywords>
            <Keywords name="Folders in comment, middle"></Keywords>
            <Keywords name="Folders in comment, close"></Keywords>
            <Keywords name="Keywords1">if else while animate for repeat waitUntil</Keywords>
            <Keywords name="Keywords2">to&#x000D;&#x000A;method&#x000D;&#x000A;return&#x000D;&#x000A;argCount&#x000D;&#x000A;arg&#x000D;&#x000A;lastReceiver&#x000D;&#x000A;call&#x000D;&#x000A;callWith&#x000D;&#x000A;function&#x000D;&#x000A;parse&#x000D;&#x000A;primitives&#x000D;&#x000A;comment&#x000D;&#x000A;globalFuncs</Keywords>
            <Keywords name="Keywords3">true false not and or</Keywords>
            <Keywords name="Keywords4">this</Keywords>
            <Keywords name="Keywords5"></Keywords>
            <Keywords name="Keywords6"></Keywords>
            <Keywords name="Keywords7"></Keywords>
            <Keywords name="Keywords8"></Keywords>
            <Keywords name="Delimiters">00&apos; 01 02&apos; 03( 04 05) 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23</Keywords>
            <WordsStyle name="DEFAULT" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="COMMENTS" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="LINE COMMENTS" fgColor="5E86BD" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="NUMBERS" fgColor="FF00FF" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="KEYWORDS1" fgColor="C10000" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="KEYWORDS2" fgColor="000080" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="KEYWORDS3" fgColor="FF8000" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="KEYWORDS4" fgColor="129300" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="KEYWORDS5" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="KEYWORDS6" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="KEYWORDS7" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="KEYWORDS8" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="OPERATORS" fgColor="0000FF" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="FOLDER IN CODE1" fgColor="FF0000" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="FOLDER IN CODE2" fgColor="FF0000" bgColor="FFFFFF" fontStyle="1" nesting="0" />
            <WordsStyle name="FOLDER IN COMMENT" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS1" fgColor="FF00FF" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS2" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="100924417" />
            <WordsStyle name="DELIMITERS3" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS4" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS5" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS6" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS7" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />
            <WordsStyle name="DELIMITERS8" fgColor="000000" bgColor="FFFFFF" fontStyle="0" nesting="0" />

You need to copy the code to a .xml file and then import into notepad++ with the user defined language feature in the language panel. It will be easy to modify for anyone who wants to do so.

Known Bug :
When opening a file with GP code and selecting GP as language, the blocks might display without any sense. The only workaround I found is to copy/paste the code in a new file to have it displayed correctly.

-Not all primitives are highlighted
-Methods are not recognized as functions, variables as variables, etc as etc. (But it seems to be possible to do so with other featurees of notepad++)
-Numbers are highlited when they are in a var or function name inside of parenthesis (like in the sreenshot)

User avatar
Posts: 89
Joined: Apr 30th, '18, 00:28
Location: Eastern United States

Re: Notepad++ simple GP syntax highlighting

Post by Calloway » Jul 6th, '19, 03:22

Thank you for this!
I've been trying to do this exact thing but it seems you beat me to it lol

I'll try adding more primitives
